What an oil filter actually does

An engine oil filter captures contaminants carried in circulating oil. The pump moves the oil; the filter’s porous media retains particles as oil passes through. It does not remove every contaminant or restore used oil’s additives. The air filter belongs to a separate intake-air path. FILTRON describes engine-oil filtration.

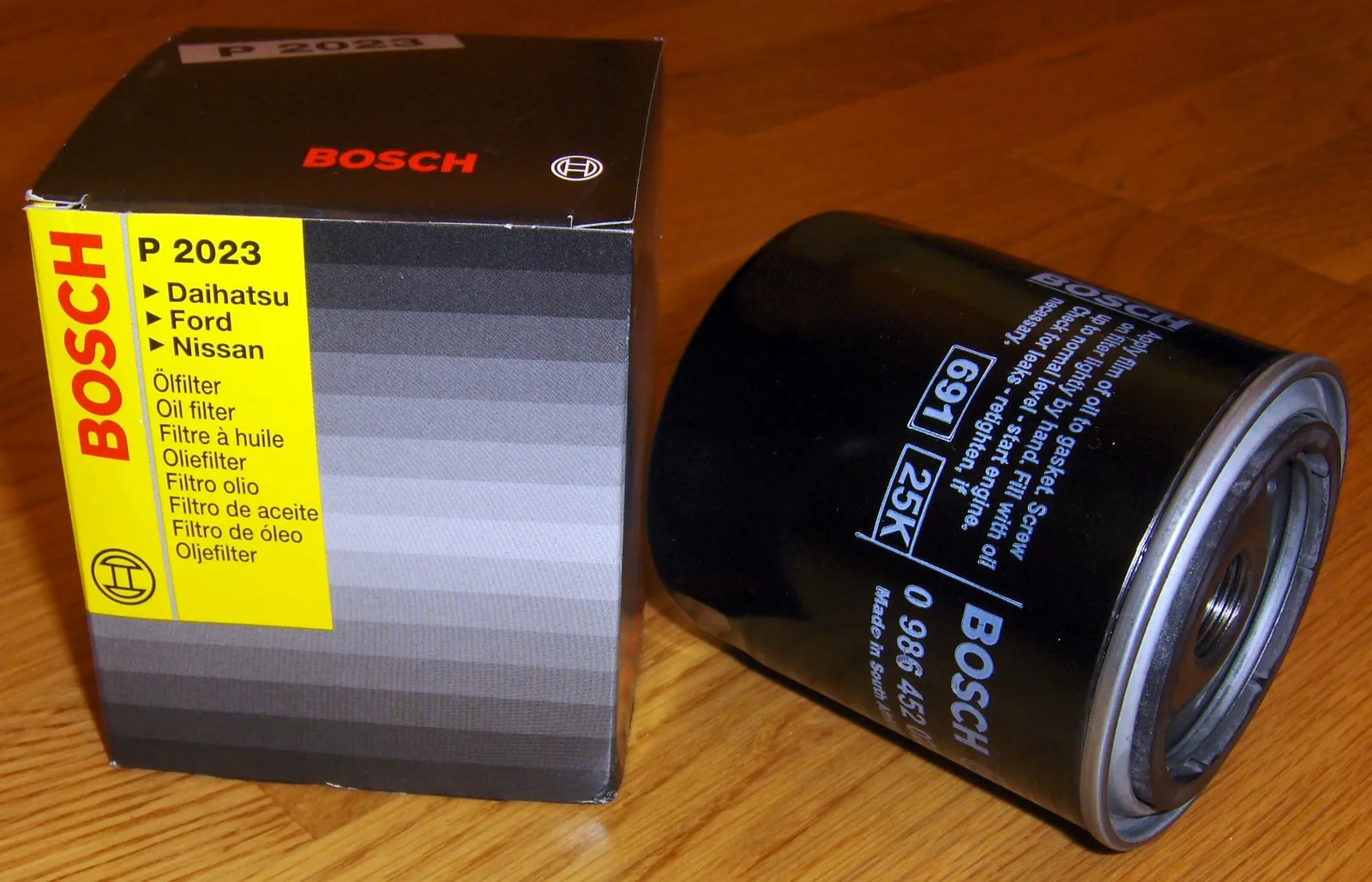

Spin-on filters combine the element with a replaceable metal shell. Cartridge systems replace an element inside a retained housing. The visible can is therefore one package for the function, not the only kind of oil filter.

Two valves, two problems

A filter bypass opens when restriction through the media becomes excessive, allowing oil to reach the engine without passing through that media. Cold, viscous oil or a loaded element can create the conditions for bypass. Preserving lubrication is preferable to starving the engine, but bypass flow is not a substitute for filtration or scheduled service. FILTRON explains the bypass function.

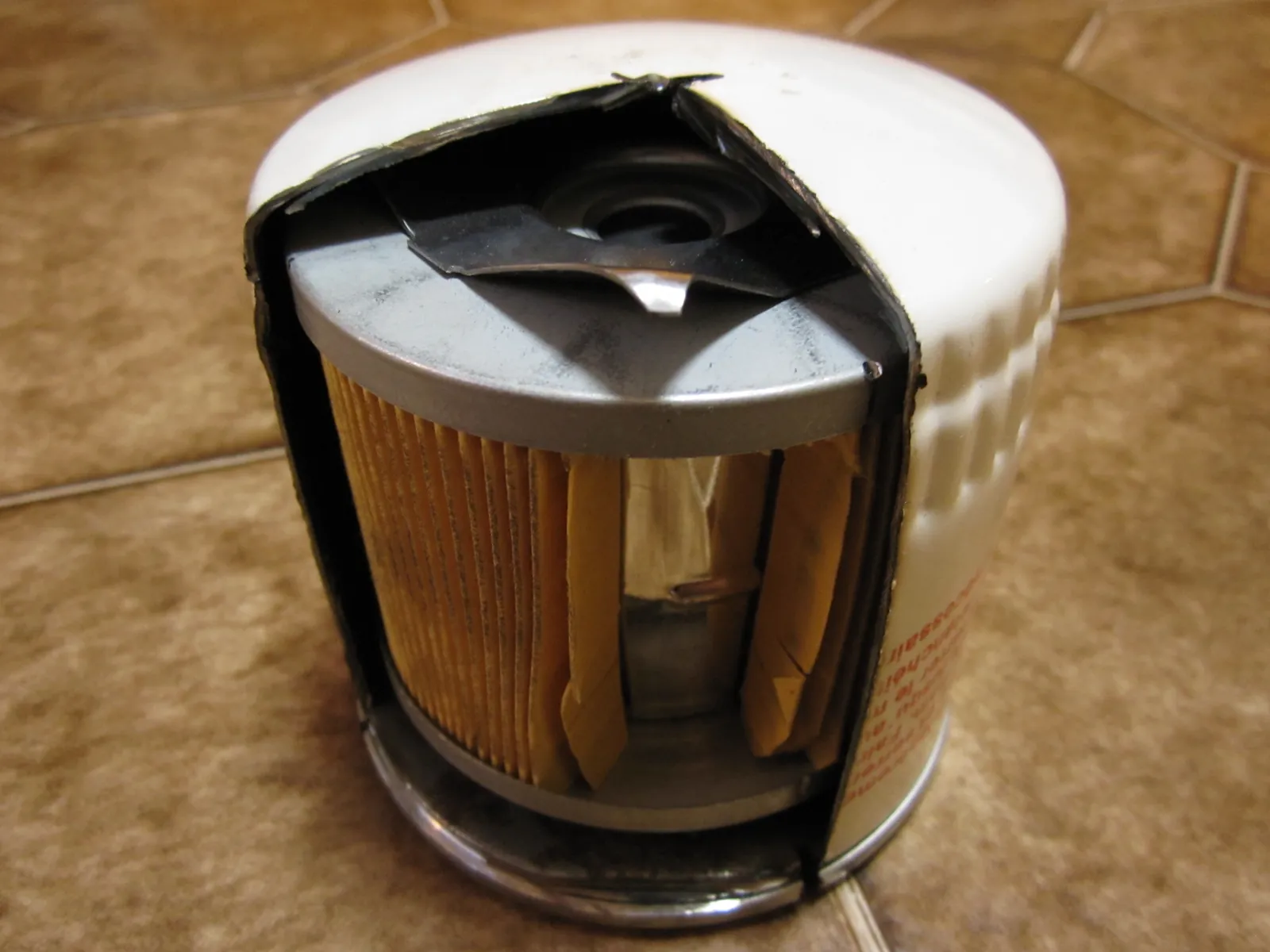

An anti-drainback valve instead helps retain oil in the filter when the engine stops. It does not act as the same pressure-relief path. Whether a particular filter contains these valves depends on the engine and filter design; the cutaway is an example, not a universal parts diagram.

Filters that screw onto the same thread can have different dimensions, media and valve specifications. Select the listed application and follow the vehicle’s oil-and-filter service schedule. Skipping a change does not establish that the bypass is continuously open, and a clean exterior does not show how loaded the media is. The useful distinction is flow through the media, temporary bypass around it, and oil retention after shutdown.
